FLAT TOP CRANES EMT SERIES

FEATURES

+ Max jib: 75 m

+ Capacity: 4-20 t

+ No A-frame and tie rods eases assembly and further maintenance

+ Smaller unit weight and lower erection height of the vertical tower

+ Easier transportation due to lighter weight and less parts

+ Maximum load up to 18 tons for cranes with 70 and 75 meter jib

+ 65 meters maximum free-standing height

+ 350 meters maximum height

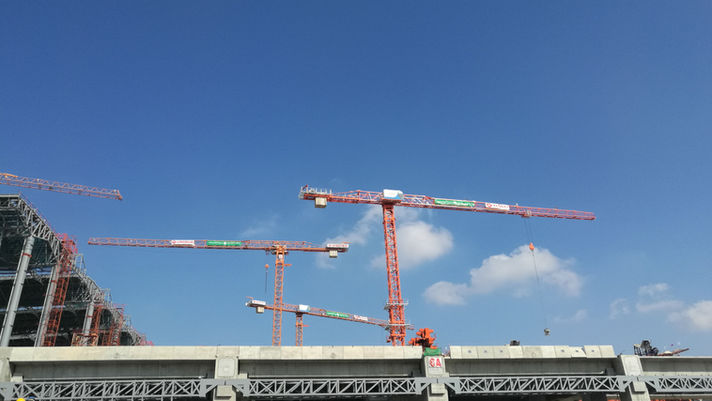

The Flat Top Tower Crane are the tower cranes with the top part removed. This decreases the height of crane, allowing it to be use in congested areas where space is confined or near the airports.Topless cranes can be also used in conjunction with other tower cranes at sites with limited area access. They’re well suited for heavy lifting and placement duties on the most challenging jobsites.



Improved performance of the Topless Tower Crane significantly lowers the requirements for hoisting capacity required for mounting and dismantling of the Mobile Crane.

Model
Tip Load
(Ton)
Max Load
(Ton
)
Jib Length (m)
Mast Section Type
Freestanding Height (m)
Catalogue

EMT4010-4

1.0
4
40
1.2m*1.2m*3m
32.40

EMT5013-5

1.3
5
50
1.2m*1.2m*3m
39.5

EMT5013-6

1.3
6
50
1.2m*1.2m*3m
36,5

EMT5517-8

1.7
8
55
1.6m*1.6m*3m
45.6

EMT6016-8(1.6m)

1.6
8
60
1.6m*1.6m*3m
39.6

EMT6016-8(2.0m)

1.6
8
60
2.0m*2.0m*3m
51.6

EMT6016-10(1.6m)

1.6
10
60
1.6m*1.6m*3m
39.60

EMT6016-10(2.0m)

1.6
10
60
2.0m*2.0m*3m
60.60

EMT6520-8

2
8
65
2.0m*2.0m*3m
60.00

EMT6520-10

2
10
65
2.0m*2.0m*3m
60.00

EMT6520-12

2
12
65
2.0m*2.0m*3m
60.00

EMT7020-10

2
10
70
2.0m*2.0m*3m
59.80

EMT7524-16

2.4
16
75
2.0m*2.0m*3m
60.50

EMT7524-18

2.4
18
75
2.0m*2.0m*3m
51.50
